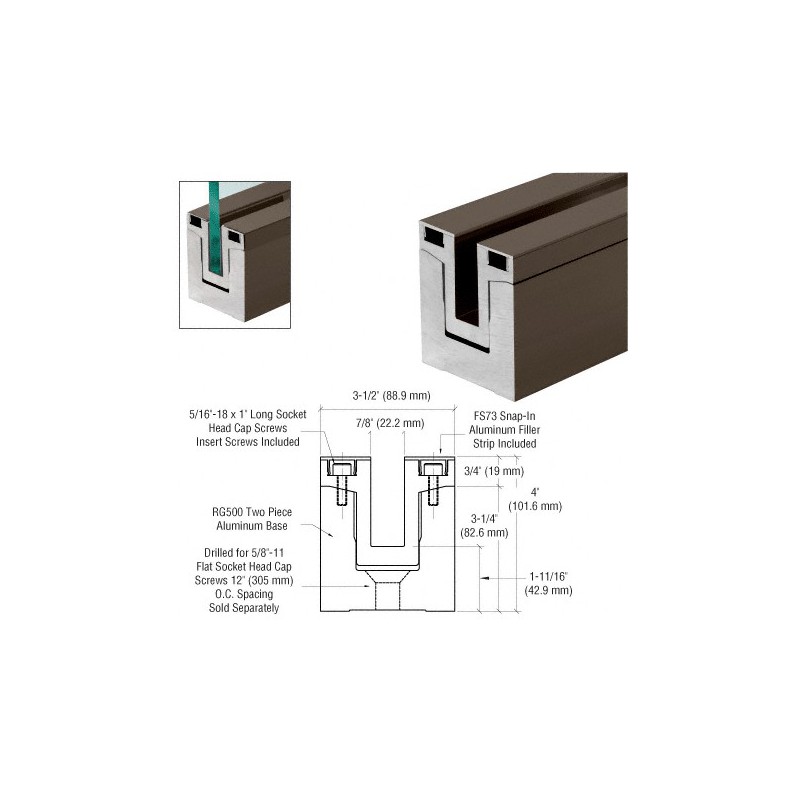

CRL-Blumcraft® Dark Bronze Anodized RG500 Series Two Piece Base Shoe - RG500DU
CRL-Blumcraft's RG500 Series Two Piece Base Shoe System is offered in stock lengths or custom fabricated to size with or without factory installed 3/4" (19 mm) glass panels. The system permits easy glass panel installation and replacement by means of bolts. CRL-Blumcraft's Glass Railing Systems are designed to meet and exceed typical code requirements for guard rail applications.
Catalog Number: RG500DU
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 156R
HR18 Architectural Railing Systems 2018, PAGE 182B
CRL93A Architectural Railings, PAGE HR044
Color: Dark Bronze
Stock Length: 144" (3.65 m)
Hole Size: 5/8" (16 mm)
Hole Type
Center-to-Center: Flat Head
12" (305 mm)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 156R
HR18 Architectural Railing Systems 2018, PAGE 182B
CRL93A Architectural Railings, PAGE HR044
Color: Dark Bronze
Stock Length: 144" (3.65 m)
Hole Size: 5/8" (16 mm)
Hole Type
Center-to-Center: Flat Head
12" (305 mm)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
RG500MCA CRL-Blumcraft Mill Clear Anodized RG500 Series Two Piece Base Shoe
RG500SA CRL-Blumcraft Satin Anodized RG500 Series Two Piece Base Shoe
RG500MCA CRL-Blumcraft Mill Clear Anodized RG500 Series Two Piece Base Shoe
RG500SA CRL-Blumcraft Satin Anodized RG500 Series Two Piece Base Shoe
Typical Mountings for 3/4" (19 mm) Glass, Steel Sub-Structures by Others.
Installation Note: The RG500 Base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 5/8"-11 Flat Socket Head Cap Screws. Customer to drill and tap thru 5/8" (16 mm) thick (minimum) Continuous Steel Plate using RG500 Base as a template for hole location.
Glass Specifications: 3/4" (19 mm) Thick Glass using Wet Glaze System.
Tempered Glass: Shall be 3/4" (19 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
Shipping Note: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
Installation Note: The RG500 Base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 5/8"-11 Flat Socket Head Cap Screws. Customer to drill and tap thru 5/8" (16 mm) thick (minimum) Continuous Steel Plate using RG500 Base as a template for hole location.
Glass Specifications: 3/4" (19 mm) Thick Glass using Wet Glaze System.
Tempered Glass: Shall be 3/4" (19 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
Shipping Note: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
